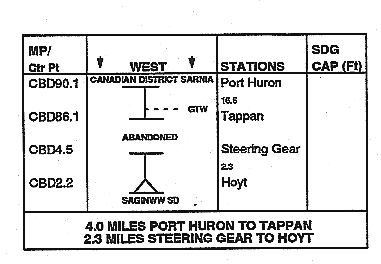

111.1 DIAGRAM CROSS-REFERENCE
Table 83. Diagram Cross-Reference
Subdivision | Service Lane | Page |
---|---|---|
Saginaw | Detroit | 41 |
112.0 METHOD OF OPERATION
112.1 AUTHORITY FOR MOVEMENT
Table 84. Authority for Movement | |
---|---|
Between Location/Mile Post | Rules |
CBD4.5 and CBD2.2 | 93 |
113.0 SPEEDS
113.1 MAXIMUM AUTHORIZED SPEED
Table 85. Maximum Authorized Speed | |
---|---|
Between Location/Mile Post | MPH |
CBD4.5 and CBD2.2 | 40 |
113.2 SPEED RESTRICTIONS
Table 86. Speed Restrictions | |
---|---|
Between Location/Mile Post | MPH |
Port Huron - CBD90.1 and CBD86.1 | 20 |
113.8 ENGINE SPEED INDICATORS AND ODOMETERS
Engine speed indicators, odometers and RDU equipment must be checked between the first encountered mile post location listed below:
CBD89.0 and CBD86.0
115.0 INSTRUCTIONS RELATING TO OPERATING RULES
115.5 GRAND TRUNK WESTERN BULLETIN BOOK LOCATIONS
TAPPAN TO NORTH KEARSLEY
Employees, when going on duty for trains originating at Port Huron, destined to operate over GTW trackage between North Kearsley and Tappan, must review GTW bulletins in bulletin book. GTW bulletin books are in service at the following locations:
Flint - Yard Office
Port Huron - Yard Office
115.83-A TRAIN BULLETIN AND RELEASE FORM
1. Centralized dispatching system printers and/or telecopier (Omnifax, Facsimile, & Telefax) machines are located at:
Port Huron, Mi - Yard Office
2. Grand Trunk Western Railroad Trackage -
Before departing Port Huron, Ml, trains destined for GTW trackage between North Kearsley and Tappan, MI, must:
a) The conductor and engineer must have in their possession the following sections of Grand Trunk Western Rail Operations Manual:
115.104 SWITCHES
1. Hand-Operated Switches
Port Huron - Normal position of switch (CSX-GTW) located 300 feet west of Tenth Street is for movement last used.
115.105 USE OF SPECIFIED TRACKS
1.PH&D Industrial Track and MP CBD86.1 to MP CBD90.1-
a) Trains and/or engines will not occupy this track without receiving yarding instructions from the yardmaster at Port Huron.
b)OTE movements will not be made without first
advising the yardmaster at Port Huron.
c)Trains and/or engines will be operated in accordance with Rule 105, not to exceed 20 MPH, except as noted below:
Table 87. Speed Restrictions | |
---|---|
Between Location/Mile Post | MPH |
Port Huron and Belle River Bridge (end of track) - Trains handling loaded LPG tank cars | 15 |
East & West legs of wye tracks at PH&D Yard Office | 10 |
Marysville - Electric and Gratiot Avenues | 10 |
St. Clair - Vine and Hathaway Streets | 15 |
d) Chrysler Motors, CBF5.0 - Train crews will open door and will know that bridge over track in building has been raised before removing derail to enter. Plant overhead door will not be activated to close until all equipment is clear of door.
e) Akzo Salt, CBF11A - Crews will remove derails inside doors of plant. Gates over track are located 100 feet beyond M-29 Highway crossing.
f) Amoco (Dome Petroleum), CBF11.0 - Sign reading, 'Tank Car Connected', on track will require trains or engines to stop, and not couple to cars, until it is known if cars are clear and free of attachments.
g) United Technologies Automotive Division (Inmont), CBF3.0 - Is equipped with a collapsible rail dock shelter. Cars must not be coupled to and/or be moved while the dock shelter is attached.
2. CF Industries Spur Track, CBD85.9 - CBD83.5
a) Trains and/or engines will operate in accordance
with Operating Rule 105, not to exceed 20 MPH.
b) Trains and/or engines will not occupy this track without first receiving yarding instructions from yardmaster at Port Huron.
c) OTE movements will not be made without first
advising the yardmaster at Port Huron.
115.400 RADIO STATIONS AND INSTRUCTIONS
All road trains will monitor channel 08.
Table 88. Radio Stations and Instructions for Contacting the Train Dispatcher
Mile Post
Location | Hours of
Operation | Channel
Monitored | Type
Station |
---|---|---|---|
Port Huron | 0800-0100 Mon-Fri; 1600-2400 Sat. | 08 & 70 | Terminal |
Range Road | Continuous | 08 | Wayside |
Note: AX Train Dispatcher call-in number is 7.
AX Train Dispatcher radio channel is 84.
AX Train Dispatcher telephone No. is 1-800-555-1212.
116.0 MISCELLANEOUS INSTRUCTIONS
1. CLOSE CLEARANCES -Because of close clearance at the following location, employees are prohibited from riding the sides of cars:
LOCATION | TRACK |
---|---|
Saginaw General Motors Delphi Chassis | Nos. 2 & 6 Tracks |
