80.0 MANISTEE SUBDIVISION-MJ Detroit Service Lane Timetable No. 2

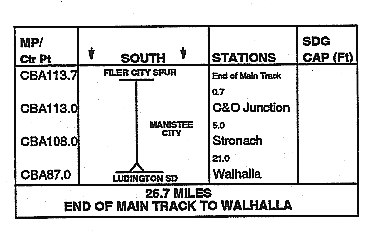

81.1 DIAGRAM CROSS-REFERENCE

Table 56. Diagram Cross-Reference

Subdivision Service Lane Page

Ludington Detroit 21

Subdivision	Service Lane	Page
Ludington	Detroit	21

82.0 METHOD OF OPERATION

82.1 AUTHORITY FOR MOVEMENT

Table 57. Authority for Movement
Between Location/Mile Post Rules

CBA113.7 and CBA107.7 93

CBA107.7 and CBA87.8 120-132

CBA87.8 and CB120.8 93

Table 57. Authority for Movement
Between Location/Mile Post	Rules
CBA113.7 and CBA107.7	93
CBA107.7 and CBA87.8	120-132
CBA87.8 and CB120.8	93

82.2 DTC BLOCK LIMITS

Between C&O Junction and Walhalla

Table 58. DTC Block Limits

Between Location/Mile Post Block Names

CBA107.7 and CBA95.5 Manis

CBA95.5 and CBA87.8 Wal

Table 58. DTC Block Limits
Between Location/Mile Post	Block Names
CBA107.7 and CBA95.5	Manis
CBA95.5 and CBA87.8	Wal

82A EXCEPTED TRACKS

CBA112.0 to CBA113.7 End of Track
Filer City Spur

83.0 SPEEDS

83.1 MAXIMUM AUTHORIZED SPEED

Table 59. Maximum Authorized Speed

Between Location/Mlie Post MPH

CBA113.7 and CBA108.0 30

CBA108.0 and CBA87.0 40

Table 59. Maximum Authorized Speed
Between Location/Mlie Post	MPH
CBA113.7 and CBA108.0	30
CBA108.0 and CBA87.0	40

83.2 SPEED RESTRICTIONS

Table 60. Speed Restrictions

Between Location/Mile Post MPH

Manistee Drawbridge 10

On curves between CBA113.7 and CBA108.0 25

Walhalla - both legs of wye 10

Table 60. Speed Restrictions
Between Location/Mile Post	MPH
Manistee Drawbridge	10
On curves between CBA113.7 and CBA108.0	25
Walhalla - both legs of wye	10

83.8 ENGINE SPEED INDICATORS AND ODOMETERS

Engine speed indicators, odometers and RDU equipment must be checked between the first encountered mile post location listed below:

CBA106.0 and CBA90.0

84.0 EQUIPMENT RESTRICTIONS

Table 61. Equipment Restrictions

Location Equipment Restriction

Entire subdivision Six-axle units Must not
operate on

Manistee- Trestle
at Michigan Engines Must not
operate on

Manistee-Bridge
MA25.1 (CBA112.0) Lumber
Cars with
gross weight
exceeding 220,000 lbs. Must not exceed
10 MPH

Location	Equipment	Restriction
Entire subdivision	Six-axle units	Must not operate on
Manistee- Trestle at Michigan	Engines	Must not operate on
Manistee-Bridge MA25.1 (CBA112.0)	Lumber Cars with gross weight exceeding 220,000 lbs.	Must not exceed 10 MPH

Restricted Equipment Rule 7 will apply at the following locations:

CBA110.0 and CBA109.9

CBA108.6 and CBA108.3

CBA89.9 and CBA89.7

85.0 INSTRUCTIONS RELATING TO OPERATING RULES

85.83-A TRAIN BULLETIN BULLETIN AND RELEASE FORM

Centralized dispatching system printers and/or telecopier, (Omnifax, Facsimile, and Telefax) machines are located at:

Manistee - Yard Office

85.98 JUNCTIONS, DRAWBRIDGES AND RAILROAD CROSSINGS AT GRADE

1. Drawbridges

a) Manistee, Manistee River Bridge - If signal is at stop position, after stopping, train will secure permission of bridgetender to proceed. If bridge is unattended, train may proceed after a member of the crew has determined bridge locks are in place.

85.105 USE OF SPECIFIED TRACKS

Filer City Spur - Trains and/or engines will be operated in accordance with Rule 105.

85.400 RADIO STATIONS AND INSTRUCTIONS

All road trains will monitor channel 08.

Table 62. Radio Stations and Instructions for Contacting the Train Dispatcher

Mile Post
Location Hours of
Operation Channel
Monitored Type
Station

Freesoil Continuous 08 Wayside

Mile Post Location	Hours of Operation	Channel Monitored	Type Station
Freesoil	Continuous	08	Wayside

Note: AW Train Dispatcher's call-in number is 3.

AW Train Dispatcher radio channel is 14.

AW Train DispatcheFtelephone No. is 1-800-555-1212.
