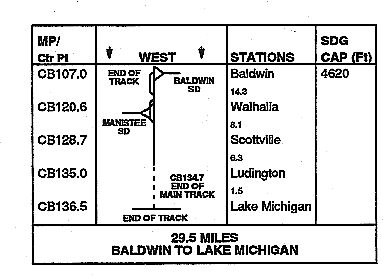

71.1 DIAGRAM CROSS-REFERENCE
Table 49. Diagram Cross-Reference
| Subdivision | Service Lane | page |
|---|---|---|
| Baldwin | Detroit | 1 |
| Manistee | Detroit | 23 |
72.0 METHOD OF OPERATION
72.1 AUTHORITY FOR MOVEMENT
| Table 50. Authority for Movement | |
|---|---|
| Between Location/Mile Post | Rules |
| CB107.0 and CB109.0 | 93 |
| CB109.0 and CB118.4 | 120-132 |
| CB118.4 and CB122.3 | S3 |
| CB122.3 and CB134.7 | 120-132 |
72.2 DTC BLOCK UM17S
| Table 51. DTC Block Limits | |
|---|---|
| Between Location/Mile Post | Block Names |
| CB109.0 and CB1 18.4 | Bald |
| CB122.3 and CB134.7 | Scott |
72.4 EXCEPTED TRACKS
Ludington Yard and Industry Tracks
73.0 SPEEDS
73.1 MAXIMUM AUTHORIZED SPEED
| Table 52. Maximum Authorized Speed | |
|---|---|
| Between Location/Mile Post | MPH |
| CB107.0 and CB134.7 | 40 |
73.2 SPEED RESTRICTIONS
| Table 53. Speed Restrictions | |
|---|---|
| Between Location/Mile Post | MPH |
| Entire Subdivision-Trains in excess of 7000 tons | 35 |
| CB128.0 and CB129.0 | 35 |
73.6 ENGINE SPEED INDICATORS AND ODOMETERS
Engine speed indicators, odometers and RDU equipment must be checked between the first encountered milepost locations listed below:
CB130.0 and CB134.0
75.0 INISTUCTIONS RELATING TO OPERATING RULES
75.58 DEFECT DETECTORS
| Table 54. Defect Detectors | |
|---|---|
| Mile Post Location | Type |
| Baldwin, MI CB115.6 | Audible Instructions |
75.83-A TRAIN BULLETIN AND RELEASE FORM
Centralized dispatching system printers and/or telecopier (Omnifax, Facsimile, and Telefax) machines are located at:
Ludington - East Yard Office
75.104 SWITCHES
1. Hand-Operated Switches
a) Baldwin, South Wye Switch - Must be left lined for movement to the West Wye.
b) Baldwin, West Wye Switch - Must be left lined for movement to the West Wye.
c) Walhalla, East Leg of Wye Switch - East leg of Wye switch located on passing siding, may be left as last lined. Switch must be left locked in last position used. Trains approaching this switch will approach prepared to stop for switch not lined for their movement.
75.105 USE OF SPECIFIED TRACKS
Baldwin, Smith Spur (CB107.4 to end of track) and East Leg of Wye - Trains, Engines and track cars will be operated in accordance with Rule 105.
Ludington Yard:
1. Hand-operated, hinged wheel stops are located on Harbison Walker No. I Industrial track 400 feet west of Harbison Walker Switch, and No. 2 Industrial track 350 feet west of Harbison Walker Switch. When in 'Up' position these wheel stops will be protected by 'Blue Flag. These wheel stops and blue flag will be operated only by Harbison Walker personnel.
2. Yard crews switching Dow Chemical will sound the horn twice at all crossings.
3. Locomotives left unattended without being coupled to other rail equipment must be blocked or chained.
75.400 RADIO INSTRUCTIONS AND RADIO STATIONS
All road trains will monitor channel 08.
Table 55. Radio Stations and Instructions for Contacting the Train Dispatcher
| Mile Post Location | Hours of Operation | Channel Monitored | Type Station |
|---|---|---|---|
| Custer | Continuous | 08 | Wayside |
Note: AW Train Dispatcher's call-in number is 3.
AW Train Dispatcher radio channel is 14.
AW Train Dispatcher telephone No. is 1-800-555-1212.
