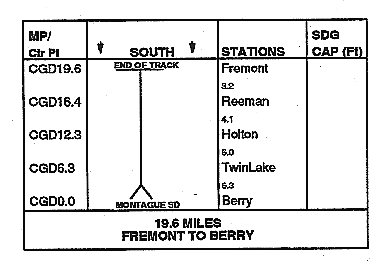

41.1 DIAGRAM CROSS-REFERENCE
Table 29. Diagram Cross-Reference | ||
---|---|---|
Subdivision | Service Lane | Page |
Montague | Detroit | 25 |
42.1 AUTHORITY FOR MOVEMENT
Table 30. Authority for Movement | |
---|---|
Between Location/Mile Post | Rules |
CGD19.6 and CGDO.6 | 120-132 |
CGDO.6 and CGDO.0 | 93 |
42.2 DTC BLOCK LIMITS
Between Fremont And Berry
Table 31. DTC Block Limits | |
---|---|
Between Location/Mile Post | Block Names |
CGD19.6 and CGDO.6 | Free |
43.1 MAXIMUM AUTHORIZED SPEED
Table 32. Maximum Authorized Speed | |
---|---|
Between Location/Mile Post | MPH |
CGD 19.6 and CGDO.0 | 25 |
44.0 EQUIPMENT RESTRICTIONS
Table 33. Equipment Restrictions | ||
---|---|---|
Location | Equipment | Restriction |
Entire Subdivision | SD40, U23B,
SD7, SD9, SD18, SD35, U30B, SD40-2, SD20-2, B30-7, SD50; | Must not
operate on |
45.0 INSTRUCTIONS RELATING TO OPERATING RULES
45.100 ROAD CROSSINGS AT GRADE
1. Providing Crossing Protection
a) Fremont:
1)State Street - Trains and engines approaching crossing must not exceed 6 MPH until crossing is reached. All movements over crossing must be protected by a member of crew on the ground.
2)Main Street (M-82) - Unattended equipment
must not be stored within 200 feet of crossing.
45.105 USE OF SPECIFIED TRACKS
Gerber Products:
1. Coal Hopper Unloading Facility -
a) Trainmen are not permitted to work on east side of
track inside gate.
b) Trainmen must not walk on or stand on the grating
covering the coal hopper.
c) Not more than 3 cars will be placed on coal track
at one time.
2. Do not switch plant between 1200 and 1300 hours. If a train is in this area between the above hours, all crossings must be cut and kept clear to permit vehicular traffic access to the plant.
45.400 RADIO STATIONS AND INSTRUCTONS
All road trains will monitor channel 08.
BD Train Dispatcher's call-in number is 2.
ED Train Dispatcher radio channel is 35.
ED Train Dispatcher telephone No. is 1-888-555-1212.
